Hydrogen Gas Production

If you download the NetLogo application, this model is included. You can also Try running it in NetLogo Web

WHAT IS IT?

This model simulates the production of hydrogen gas through the reaction of zinc metal with hydrochloric acid.

HOW IT WORKS

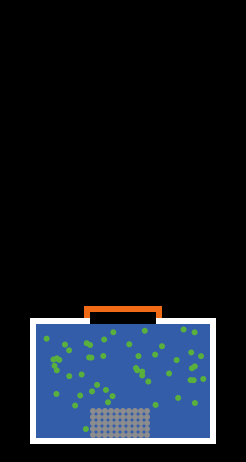

Zinc metal (non-moving gray circles) sits at the bottom of a flask (outlined in white) filled with an aqueous solution of hydrochloric acid (HCl). Since HCl is a relatively strong acid, in solution it dissociates into Chloride Cl^- ions (not shown) and hydrogen ions which each join a water molecule to form a hydronium H₃O⁺ ion (green circles). When two of these ions encounter a zinc atom, they react to produce a ZnCl₂ molecule and a hydrogen H₂ molecule (yellow circles). The ZnCl₂ in solution breaks down into zinc ions (small moving gray circles) and Chloride ions (not shown). The hydrogen molecules escape the solution and begin to exert pressure on a balloon attached to the flask’s top (outlined in orange). Based on the pressure in the balloon, its size will increase or decrease.

The full reaction is normally written as follows: > Zn(s) + 2HCl(aq) → ZnCl₂(aq) + H₂(g)

We can also write it with HCl and ZnCl₂ split into the ions they form in solution:

> Zn(s) + 2H₃O⁺(aq) + 2Cl^-(aq) → Zn²⁺(aq) + 2Cl^-(aq) + H₂(g)

Note that the Cl^- ions don't change, which is why they aren't visualized in the model.

Note: the balloon size fluctuates a lot in the model. This is due to the very small number of hydrogen molecules in the model. Due to the small number, random fluctuations can change the instantaneous pressure on the balloon by a lot. In a real balloon, the number of hydrogen molecules is so huge that the fluctuations in pressure are negligible.

HOW TO USE IT

BUTTONS

SETUP: Creates the flask, balloon, and all of the molecules in them. GO: Starts the simulation, allowing the molecules to move and react.

INPUTS

NUM-ZN: Determines the number of zinc metal atoms in the flask at the start of the simulation. NUM-HCL: Determines the number of hydrochloric acid molecules in the flask at the start of the simulation.

OUTPUTS

H2 MOLECULES: Displays the number of hydrogen gas molecules that have been produced. GAS PRODUCED: Plots the amount of hydrogen gas in the balloon over time. BALLOON SIZE: Plots the height of the balloon over time.

THINGS TO NOTICE

Pay attention to how the different molecules move. Do some molecules move faster than others? Do all of the molecules move in straight lines? Try to explain each of these observations and how they relate to reality.

THINGS TO TRY

Adjust the sliders for NUM-ZN and NUM-HCL. Pay attention to the amount of hydrogen gas produced. Can you work out how the values for NUM-ZN and NUM-HCL affect the amount of gas?

Observe the model to see where the reaction is taking place. Why isn’t it happening in other places?

EXTENDING THE MODEL

The current implementation of the balloon is not very mechanistically realistic. Try to improve this by adding a gas surrounding the balloon to balance the pressure from the gas inside of it.

NETLOGO FEATURES

This model uses partial ticks and the tick-advance primitive to ensure that molecules never move more than one patch per update. This makes sure they can't skip through the walls of the flask or balloon.

This model also uses a global variable as a slider parameter, in this case using zn-increment as the slider increment for the MOLS-ZN slider. The model uses the startup procedure to ensure that this is properly initialized as soon as the model loads.

RELATED MODELS

This model is similar to several of the GasLab and Connected Chemistry models in the Models Library, particularly the GasLab Adiabatic Piston model.
