Fire Simple Extension 2

If you download the NetLogo application, this model is included. You can also Try running it in NetLogo Web

ACKNOWLEDGMENT

This model is from Chapter Three of the book "Introduction to Agent-Based Modeling: Modeling Natural, Social and Engineered Complex Systems with NetLogo", by Uri Wilensky & William Rand.

• Wilensky, U. & Rand, W. (2015). Introduction to Agent-Based Modeling: Modeling Natural, Social and Engineered Complex Systems with NetLogo. Cambridge, MA. MIT Press.

This model is in the IABM Textbook folder of the NetLogo Models Library. The model, as well as any updates to the model, can also be found on the textbook website: http://www.intro-to-abm.com/.

WHAT IS IT?

This project simulates the spread of a fire through a forest. It shows that the fire's chance of reaching the right edge of the forest depends critically on the density of trees. This is an example of a common feature of complex systems, the presence of a non-linear threshold or critical parameter. This model extends the Fire Simple Extension 1 model by adding wind.

HOW IT WORKS

The fire starts on the left edge of the forest, and spreads to neighboring trees. The fire spreads in four directions: north, east, south, and west.

Unlike the original model, this model adds wind, which increases the probability of a fire igniting in the direction of the wind and decreases it away from the wind.

HOW TO USE IT

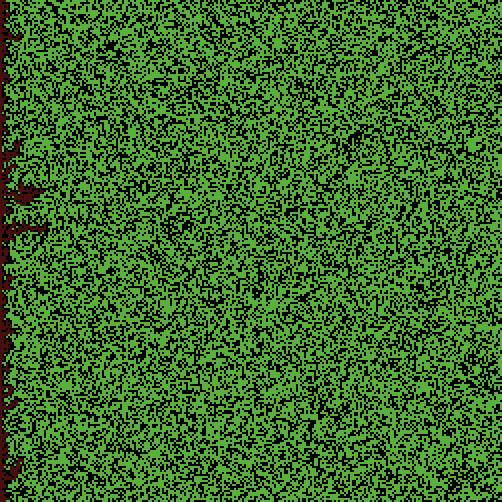

Click the SETUP button to set up the trees (green) and fire (red on the left-hand side).

Click the GO button to start the simulation.

The DENSITY slider controls the density of trees in the forest. (Note: Changes in the DENSITY slider do not take effect until the next SETUP.)

The PROBABILITY-OF-SPREAD slider affects how the fire spreads from patch to patch.

The SOUTH-WIND-SPEED slider affects how strong the wind is from the south. You can set it negative to create a north wind.

The WEST-WIND-SPEED slider affects how strong the wind is from the south. You can set it negative to create an east wind.

THINGS TO NOTICE

Compare this model to the Fire Simple Extension 1 model. How does the wind affect the model results?

THINGS TO TRY

Set the wind speeds to various settings and see if you can create any interesting patterns.

How, if at all, does adding wind change the overall amount of forest burned?

RELATED MODELS

Fire Simple, Fire, Percolation, Rumor Mill

CREDITS AND REFERENCES

This model is a simplified version of:

• Wilensky, U. (1997). NetLogo Fire model. http://ccl.northwestern.edu/netlogo/models/Fire. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

HOW TO CITE

This model is part of the textbook, “Introduction to Agent-Based Modeling: Modeling Natural, Social and Engineered Complex Systems with NetLogo.”

If you mention this model or the NetLogo software in a publication, we ask that you include the citations below.

For the model itself:

• Wilensky, U. (2006). NetLogo Fire Simple Extension 2 model. http://ccl.northwestern.edu/netlogo/models/FireSimpleExtension2. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.

Please cite the NetLogo software as:

• Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

Please cite the textbook as:

• Wilensky, U. & Rand, W. (2015). Introduction to Agent-Based Modeling: Modeling Natural, Social and Engineered Complex Systems with NetLogo. Cambridge, MA. MIT Press.
