Segregation Simple Extension 3

If you download the NetLogo application, this model is included. You can also Try running it in NetLogo Web

ACKNOWLEDGMENT

This model is from Chapter Three of the book "Introduction to Agent-Based Modeling: Modeling Natural, Social and Engineered Complex Systems with NetLogo", by Uri Wilensky & William Rand.

• Wilensky, U. & Rand, W. (2015). Introduction to Agent-Based Modeling: Modeling Natural, Social and Engineered Complex Systems with NetLogo. Cambridge, MA. MIT Press.

This model is in the IABM Textbook folder of the NetLogo Models Library. The model, as well as any updates to the model, can also be found on the textbook website: http://www.intro-to-abm.com/.

WHAT IS IT?

This project models the behavior of two types of turtles in a mythical pond. The red turtles and green turtles get along with one another. But each turtle wants to make sure that it lives near some of "its own." That is, each red turtle wants to live near at least some red turtles, and each green turtle wants to live near at least some green turtles. The simulation shows how these individual preferences ripple through the pond, leading to large-scale patterns. This model is an extension of the Segregation Simple Extension 2 model. It adds a constraint that agents also want to have a minimum number of different agents around them.

This project was inspired by Thomas Schelling's writings about social systems (particularly with regards to housing segregation in cities).

HOW TO USE IT

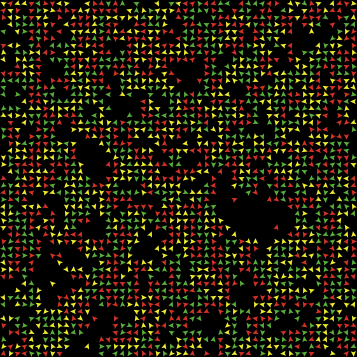

Click the SETUP button to set up the turtles. There are equal numbers of each color turtles. The turtles move around until there is at most one turtle on a patch. Click GO to start the simulation. If turtles don't have enough same-color neighbors, they jump to a nearby patch.

The NUMBER slider controls the total number of turtles. (It takes effect the next time you click SETUP.) The NUMBER-OF-ETHNICITIES slider controls the number of different types of turtles, each a different color. The %-SIMILAR-WANTED slider controls the percentage of same-color turtles that each turtle wants among its neighbors. For example, if the slider is set at 30, each green turtle wants at least 30% of its neighbors to be green turtles. The %-DIFFERENT-WANTED slider controls the percentage of different-color turtles that each turtle wants among its neighbors. Turtles can only be happy if both the %-similar and %-different constraints are met.

The "PERCENT SIMILAR" monitor shows the average percentage of same-color neighbors for each turtle. It starts at about 0.5, since each turtle starts (on average) with an equal number of red and green turtles as neighbors. The "PERCENT UNHAPPY" monitor shows the percent of turtles that have fewer same-ethnicity neighbors than they want (and thus want to move). Both monitors are also plotted.

THINGS TO NOTICE

When you execute SETUP, the turtles are randomly distributed throughout the pond. But many turtles are "unhappy" since they don't have enough neighbors of the same ethnicity. The unhappy turtles jump to new locations in the vicinity. But in the new locations, they might tip the balance of the local population, prompting other turtles to leave. If a few red turtles move into an area, the local blue or orange turtles might leave. But when the blue or orange turtles move to a new area, they might prompt red turtles to leave that area, and so on.

Over time, the number of unhappy turtles decreases. But the pond becomes more segregated, with clusters of each ethnicity.

Again, relatively small individual preferences can lead to significant overall segregation. The exact numbers depend on how many ethnicities you have, and on the random distribution of their preferences for similarity.

THINGS TO TRY

How does the diversity in PERCENT-SIMILAR-WANTED for each ethnicity affect the overall segregation pattern?

How does the added constraint of the PERCENT-DIFFERENT-WANTED for each ethnicity affect the overall segregation pattern?

Try different values for %-SIMILAR-WANTED. How does the overall degree of segregation change?

Try different values for NUMBER-OF-ETHNICITIES. How does the overall segregation pattern change?

If each turtle wants at least 40% same-color neighbors, what percentage (on average) do they end up with?

For what slider settings does the model run forever without all agents being satisfied?

NETLOGO FEATURES

In the UPDATE-GLOBALS procedure, note the use of SUM, COUNT, VALUES-FROM, and WITH to compute the percentages displayed in the monitors and plots.

CREDITS AND REFERENCES

This model is a simplified version of:

• Wilensky, U. (1997). NetLogo Segregation model. http://ccl.northwestern.edu/netlogo/models/Segregation. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

Schelling, T. (1978). Micromotives and Macrobehavior. New York: Norton.

See also: Rauch, J. (2002). Seeing Around Corners; The Atlantic Monthly; April 2002;Volume 289, No. 4; 35-48. https://www.theatlantic.com/magazine/archive/2002/04/seeing-around-corners/302471/
