## WHAT IS IT?
This is a simplified model of electrical conduction based on Drude's free electron theory. It shows how electric current in a circuit consisting of a resistive wire connected across two terminals of a battery can be represented as a process of accumulation of free-electrons inside the battery-positive.
## HOW IT WORKS

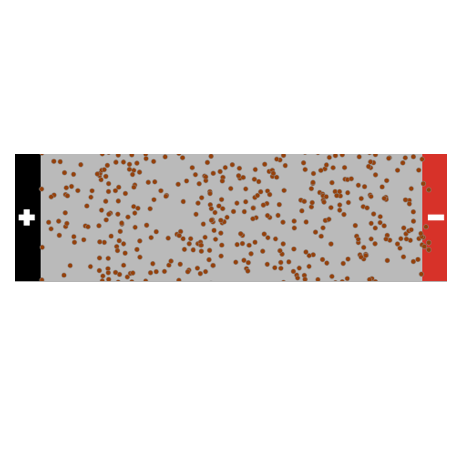

This model is based on Drude's free electron theory. The wire in this model (gray patches region) is composed of atoms, which in turn are made of negatively charged electrons and positively charged nuclei. These nuceli are hidden from view in this model for simplicity, but are displayed in the subsequent NIELS models (Current in a Wire, Series Circuit and Parallel Circuit).
According to the Bohr model of the atom, these electrons revolve in concentric shells around the nucleus. However, in each atom, the electrons that are farthest away from the nucleus (i.e., the electrons that are in the outermost shell of each atom) behave as if they are free from the nuclear attraction. These outermost electrons from each atom are called "free electrons". These free electrons obey some rules that are specified in the "Procedures" tab in the model. The applied voltage due to the battery imparts a constant speed to the electrons in the direction of the positive terminal. This is again a simplification - in reality, the voltage imparts acceleration to the electrons, and this can be seen in the subsequent NIELS models.
## HOW TO USE IT
This model has three variables: NUMBER-OF-ELECTRONS, SPEED-OF-ELECTRONS, and ELECTRON-SINK-CAPACITY. The first two variables control the number and the speed of electrons towards the battery positive, respectively. The battery terminals are represented as "electron-source" and "electron-sink" in the user interface of the models. The function of this variable is to stop the model once a certain number of electrons reach the battery positive, and a "monitor" displays the "time taken to fill the electron-sink". Electric current can be thought of as the how fast the electron-sink is filling up.
## THINGS TO NOTICE
Note that the number of free electrons inside the wire is always constant throughout a run. Given that electrons are constantly being lost to the battery-positive, how do you think this constancy is maintained in the model?
## THINGS TO TRY
For any given value of the "maximum filling capacity" of the electron-sink, find two different sets of values of the "Number" and "Speed" of electrons for which the time taken to fill the electron-sink is identical.
## EXTENDING THE MODEL
Can you alter the speed of electrons towards the battery-positive by creating obstacles in its way within the wire?
## NETLOGO FEATURES
Electrons wrap around the world only vertically.
## RELATED MODELS
Current in a Wire, Series Circuit, Parallel Circuit.
## CREDITS AND REFERENCES
This model is a part of the NIELS curriculum. The NIELS curriculum has been and is currently under development at Northwestern's Center for Connected Learning and Computer-Based Modeling and the Mind, Matter and Media Lab at Vanderbilt University. For more information about the NIELS curriculum please refer to http://ccl.northwestern.edu/NIELS.
