Grand Canyon

Run Grand Canyon in your browser
uses NetLogo 4.1
requires Java 5 or higher
(system requirements)

Note: If you download the NetLogo application, every model in the Models Library (besides the Community Models) is included. If you have trouble running this model in your browser, you may wish to download the application instead.

WHAT IS IT?

This model simulates rainfall on a patch of terrain on the eastern end of the Grand Canyon, approximately 6 miles (9.7 km) on each side, where Crazy Jug Canyon and Saddle Canyon meet to form Tapeats Canyon. Each patch represents an area approximately 105 feet (32 m) on each side. The model was created as an experiment in using NetLogo with My World GIS.

The elevation data comes from the National Elevation Dataset available at http://seamless.usgs.gov. It was converted from an ESRI Grid into an ASCII grid file using ArcGIS, then resampled to its current resolution and rescaled to lie in the range 0-999 using My World GIS.

HOW IT WORKS

Raindrops fall in random locations or at locations selected by the user, then flow downhill. If no nearby patch has a lower elevation, the raindrop stays where it is. Raindrops pool until they flow over the land nearby. Some raindrops may always stay in these pools at higher ground. Others will flow out of the system at the edges.

HOW TO USE IT

When you open the model, the STARTUP procedure automatically runs and imports the data from an external file. Press SETUP to color the patches according to their elevation, and to remove raindrops and drawings from previous runs. Press the GO button to start the simulation. With each tick, RAIN-RATE raindrops will fall at random locations, traveling downhill across the landscape.

As the simulation runs, you may click anywhere on the map to create raindrops. Manually placed raindrops are red, while those created randomly by the model are blue. The WATCH RANDOM RAINDROP button sets the perspective to watch a randomly selected raindrop (of any type). The WATCH MY RAINDROP button watches a red raindrop, if one exists.

When the DRAW? switch is turned on each raindrop marks its path in the drawing layer.

THINGS TO NOTICE

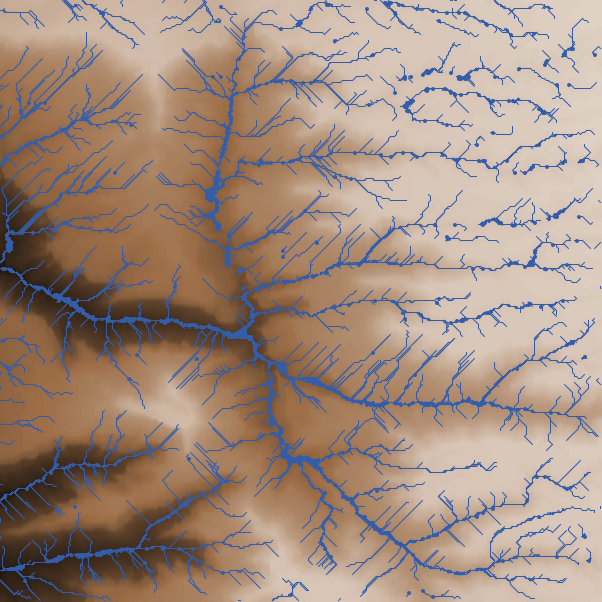

Elevations are represented by lighter and darker colors. The higher the elevation, the lighter the color used to draw that patch. Raindrops flow from high to low elevations, meaning that they flow toward darker patches.

When you let the model run for a long time, you will see pools start to form at certain locations where a bit of low land is surrounded by higher land. If you let the model run long enough, the water will eventually overflow from these dips, flowing to the rivers below.

THINGS TO TRY

Put the turtle pens down (by turning on the DRAW? switch), and see the kinds of patterns that emerge.

Try to place all of the raindrops manually. Trace the path of one drop all the way down the landscape.

Find more GIS data and import different data sets.

EXTENDING THE MODEL

Add erosion to the model, so the raindrops pick up or deposit some amount of elevation from the patches they travel over.

NETLOGO FEATURES

When there is no lower neighboring patch, raindrops change breed (from raindrop to waters) so they will no longer move.

Elevation data is read only once, when the model is loaded, in the STARTUP procedure. The external data file (Grand Canyon data.txt) is formatted such that its contents can be assigned (with FILE-READ) to a NetLogo variable.

RELATED MODELS

Erosion

CREDITS AND REFERENCES

National Elevation Dataset: http://seamless.usgs.gov
ArcGIS: http://esri.com/software/arcgis/
My World GIS: http://myworldgis.org/myworld

Thanks to Eric Russell for his work on this model.

HOW TO CITE

If you mention this model in an academic publication, we ask that you include these citations for the model itself and for the NetLogo software:
- Wilensky, U. (2006). NetLogo Grand Canyon model. http://ccl.northwestern.edu/netlogo/models/GrandCanyon. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.
- Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

COPYRIGHT NOTICE

Permission to use, modify or redistribute this model is hereby granted, provided that both of the following requirements are followed:
a) this copyright notice is included.
b) this model will not be redistributed for profit without permission from Uri Wilensky. Contact Uri Wilensky for appropriate licenses for redistribution for profit.
