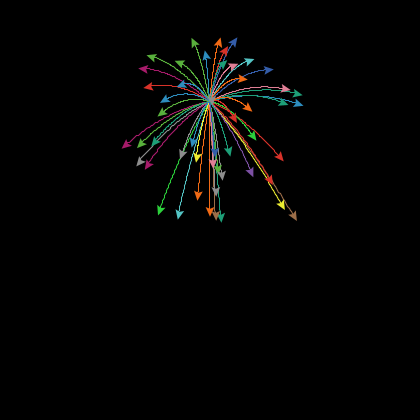

Particle System Basic

Run Particle System Basic in your browser uses NetLogo 5.0.4 requires Java 5 or higher (system requirements) Note: If you download the NetLogo application, every model in the Models Library (besides the Community Models) is included. If you have trouble running this model in your browser, you may wish to download the application instead.

## WHAT IS IT?

Particle systems are used in computer graphics to simulate the appearance of physical phenomena that can be modeled as a collection of particles. For example, some typical particle systems include: waterfalls, fire, smoke, explosions, snow, and meteors.

This example demonstrates how to write a very simple particle system only. For example, particles are only created at setup time. See the other particle system models for elaborations on the basic particle system idea.

## HOW IT WORKS

At each iteration of the GO routine, tiny forces steer the particle through its trajectory. Particles have a velocity in the x and y axes, a step and a force accumulator. This model uses a procedure to compute the forces (COMPUTE-FORCES) and another one to apply the forces (APPLY-FORCES). Combined, these procedures continuously move the particles over time.

Below are the steps for moving each particle:

1.- Initialization
First, the force accumulators are cleared of the previously calculated forces.

2.- Force Calculation
Force calculation is trivial for this particular particle system since the sole force of the model, gravity, is represented by a constant negative number. However, force calculation in general can be harder when more complicated forces, such as springs, are involved.

3.- Force Summation
After all of the individual forces are computed, the APPLY-FORCES routine sums all of them and calculates the resulting velocity of the particle.

4.- Displacement
Finally, a new position is calculated by multiplying the velocity by STEP-SIZE and adding the displacement to the current particle location. STEP-SIZE represents the small amount of time during which the forces are applied.

Notice that in this model the particles die when they reach the world boundaries.

## HOW TO USE IT

To observe only one particle at a time:

1.- Change the PARTICLES-NUMBER and STEP-SIZE.
2.- Press SETUP
3.- Press GO (Observe how the turtles move through the world.)
5.- You can optionally change the GRAVITY-CONSTANT and observe how the behavior changes.

Note that you can change the GRAVITY-CONSTANT and the STEP-SIZE while the particle is moving. For example, if the user wants the particles to fly higher he can decrease the gravity, but if he wishes the particles to stay lower he can increase the gravity pull.

## THINGS TO NOTICE

The more particles you create, the slower the model runs.

The greater the step size, the faster the model runs. (What happens if you make the step size too large?)

## THINGS TO TRY

Change the GRAVITY-CONSTANT slider while the particle is moving. Note how it stays floating or falls quickly depending when and how you adjust the gravity constant slider.

## RELATED MODELS

Particle System Fountain
Particle System Waterfall
Particle System Flame

## CREDITS AND REFERENCES

Particle Systems
http://www.siggraph.org/education/materials/HyperGraph/animation/particle.htm

Particle Systems by Allen Martin
http://web.cs.wpi.edu/~matt/courses/cs563/talks/psys.html

William T. Reeves, "Particle Systems - A Technique for Modeling a Class of Fuzzy Objects", Computer Graphics 17:3 pp. 359-376, 1983 (SIGGRAPH 83).
http://portal.acm.org/citation.cfm?id=357320

Physically based modeling Online SIGGRAPH 2001 Course Notes
http://www.pixar.com/companyinfo/research/pbm2001/

Particle Systems on Wikipedia
http://en.wikipedia.org/wiki/Particle_system

Thanks to Daniel Kornhauser for his work on this model.

## HOW TO CITE

If you mention this model in a publication, we ask that you include these citations for the model itself and for the NetLogo software:

* Kornhauser, D. and Wilensky, U. (2007). NetLogo Particle System Basic model. http://ccl.northwestern.edu/netlogo/models/ParticleSystemBasic. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.
* Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.
