Rope

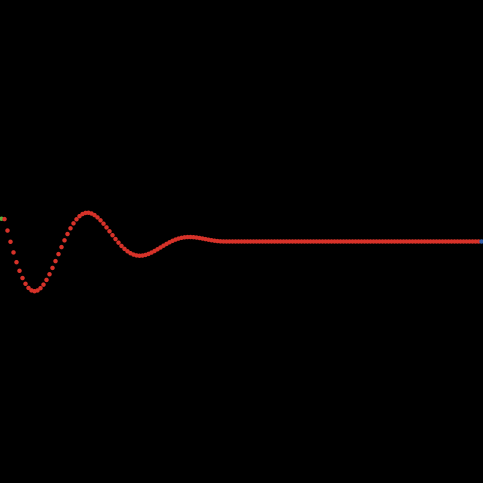

[screen shot]

If you download the NetLogo application, this model is included. (You can also run this model in your browser, but we don't recommend it; details here.)

## WHAT IS IT?

This project simulates a wave moving along a rope. The right end of the rope (shown in blue) is fixed to a wall. The left end of the rope (shown in green) provides an input, moving up and down in a sinusoidal motion. This creates a wave that travels along the rope.

## HOW IT WORKS

The rope is made up of a line of turtles. The turtle are fixed horizontally, but can move up and down. Each turtle acts as it were connected to its two neighboring turtles with springs. When a neighboring turtle is farther away, it exerts a stronger force.

When the left end of the rope (the green turtle) moves up, it "pulls up" the turtle to its right, which in turn pulls up the turtle to its right, and so on. In that way, a wave moves down the rope. When the wave reaches the right end of the rope (the blue turtle), the wave is reflected back to the left.

## HOW TO USE IT

Click the SETUP button to set up the rope. Click GO to make the left end of the rope (the green turtle) begin moving up and down.

The FRICTION slider controls the amount of friction in the rope. The FREQUENCY slider controls the speed with with the left end of the rope moves up and down. The AMPLITUDE slider controls the maximum height of the left end of the rope.

## THINGS TO NOTICE

There's a connection between the frequency with which the left end of the rope goes up and down and the number of peaks that emerge.

## THINGS TO TRY

Change the values on the sliders and observe what happens to the waves on the rope.

Try to create a "standing wave", in which some points on the rope do not move at all.

Change the blue turtle to green, so that there are two driving forces. Then change one of the red turtles in the middle of the rope to blue, so that there is a fixed point in the middle. What happens to the waves?

## EXTENDING THE MODEL

Change the right end of the rope so that it moves freely, rather than being fixed. How does that change the behavior of waves in the rope?

## NETLOGO FEATURES

For this project, it does not make sense for the turtles to "wrap" when they get to the top or bottom of the world. So the real y-position of the turtles is kept in a new variable (`ypos`), and the turtle is hidden if `ycor`, its true position, is beyond the boundaries of the world.
